You're probably standing at the back of a van, pickup, or trailer build with a tape measure in one hand and a notepad in the other. The pressure washer needs a spot. The hose reel needs room to pull cleanly. Chemicals can't tip over. The generator has to stay accessible. Then you get to the one item that affects everything else: the water tank.
That choice decides how many vehicles you can finish before a refill, how your rig handles on the road, how much payload you burn up before loading the rest of your gear, and whether your setup works smoothly or turns into a daily headache. A mobile car wash water tank isn't just a container. It's the center of the system.
New operators often focus on capacity first. Experienced operators usually focus on balance. The tank has to fit the vehicle, match the service mix, stay secure under braking, feed the pump consistently, and survive the weather in your market. If you want a practical look at how a real mobile setup functions day to day, this overview of how mobile car detailing works helps connect the tank to the full service workflow.
Your Mobile Detailing Lifeline
Most build mistakes start the same way. Someone buys a tank because it looks “big enough,” then tries to force the rest of the rig around it. That usually creates wasted space, awkward hose routing, poor weight distribution, or a van that feels heavy and unstable by the time everything is loaded.
A better approach starts with the tank as the operating core. Once that location is right, the rest of the system gets easier. You can place the pump close to the outlet, shorten feed lines, keep the hose reel path clean, and leave enough room to work inside the vehicle without climbing over gear.
Practical rule: If the tank placement makes daily loading, plumbing, or service access harder, the tank is in the wrong spot, even if it technically fits.
For a mobile detailer, the tank affects more than washing. It changes scheduling. It affects whether you can stack jobs across town without a refill stop. It determines whether you can stay self-contained at apartment lots, office parks, and fleet accounts where outside water access isn't guaranteed.
That's why experienced operators treat the mobile car wash water tank like infrastructure, not an accessory. Pick the wrong one and every day feels inefficient. Pick the right one and the whole rig starts working like a system.
Choosing Your Tank Type and Material
The first decision is usually capacity, but material matters almost as much. It affects upfront cost, empty weight, dent resistance, corrosion resistance, and how easy the tank is to integrate into a mobile setup.
Industry guidance has long placed solo detailers in the 50 to 100 gallon range, with 60-, 65-, or 90-gallon tanks often treated as the practical sweet spot for detailing work. One supplier notes that 60- or 100-gallon tanks usually get a one-person operation through the day, which is why those sizes show up so often in real mobile rigs (Detail King water tank guidance).
What most operators actually choose
Poly tanks dominate mobile detailing because they're easier to work with. They're lighter than metal options, resist corrosion, and don't punish the budget the way custom metal fabrication can. That doesn't make poly perfect. It just means it usually offers the best trade-off for a van or pickup setup.
Aluminum has a place when someone wants a cleaner fabricated build, tighter fitment, or a more custom frame-mounted system. Stainless steel can look great and hold up well, but for a typical detailing rig, the extra weight and cost usually push it into “nice if you have a reason” territory rather than “default choice.”

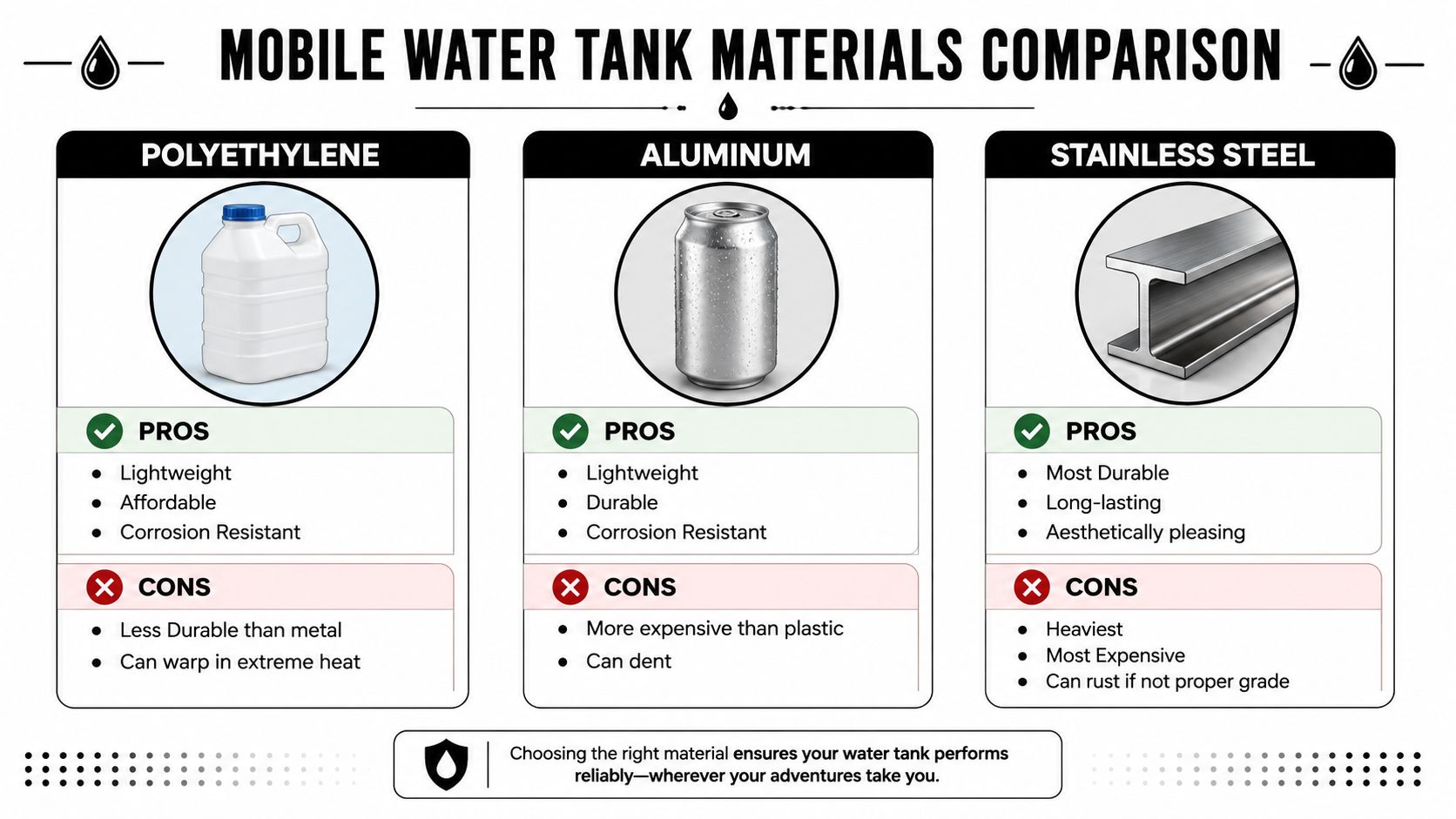

Mobile Water Tank Material Comparison
| Material | Weight | Cost | Durability | Best For |
|---|---|---|---|---|
| Polyethylene | Light | Lower | Good for normal mobile use | Most solo detailers and standard van builds |
| Aluminum | Lighter than many steel builds | Higher | Durable but can dent | Custom rigs where fit and fabrication matter |
| Stainless steel | Heaviest of the common options | Highest | Very durable when properly built | Premium or specialized setups where budget and weight matter less |
How to choose without overthinking it
Use the vehicle and service model to make the call.
- Polyethylene makes sense if you want a straightforward mobile car wash water tank that's easy to source, easier on payload, and practical for daily detailing.
- Aluminum makes sense when you're building around a specific footprint and want a fabricated system that saves some weight compared with heavier metal options.
- Stainless steel makes sense if durability, appearance, or a fixed long-term build matters more than keeping the setup simple.
Don't choose material for looks alone. Choose it for the way you'll actually load, secure, maintain, and drive the rig every day.
Sizing Your Mobile Car Wash Water Tank
You load up for a full day, top off the tank, and the van feels different before you leave the driveway. Steering gets heavier. Braking distance grows. Shelf space disappears. Tank size affects all of that, which is why sizing needs to start with payload, route plan, and the kind of work you sell.

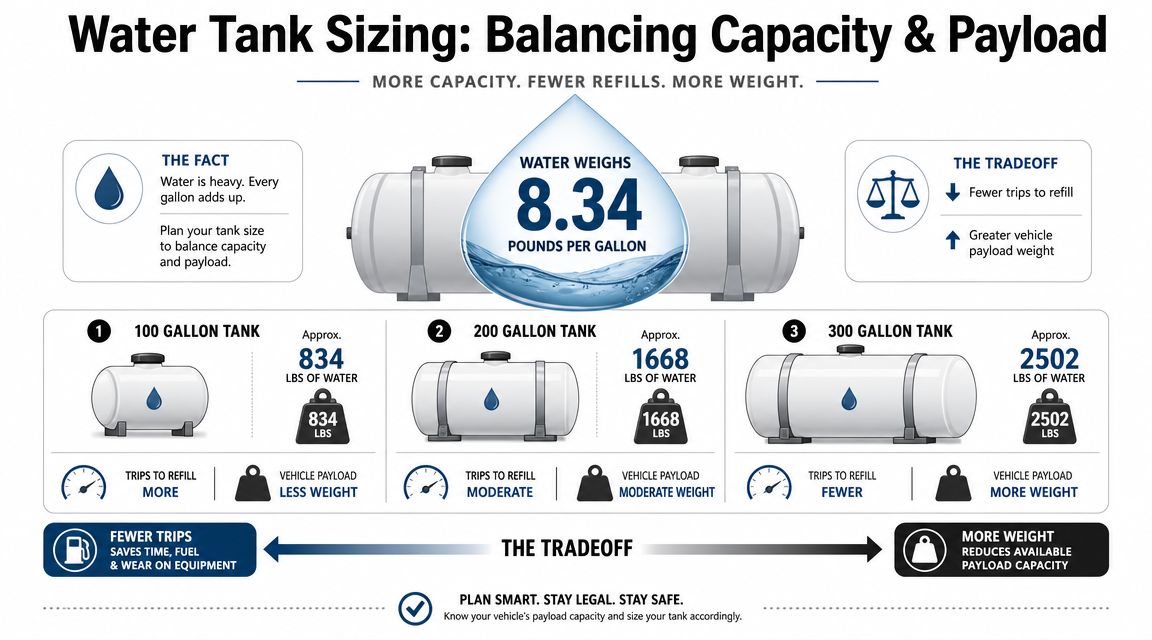

Water weight is the first hard limit. Water weighs about 8.34 lb per gallon, so a 100-gallon tank adds about 834 lb of water load alone, before tank hardware, pump, hose reel, generator, and tools are counted (Panda Hub's mobile detailing tank guide). A tank that looks reasonable on paper can push a half-ton setup into a bad spot once the rest of the rig is loaded.
The Sizing Trade-Off in Practice
More gallons buy you time between refills. They also raise operating weight, reduce cargo room, and make the vehicle less forgiving in traffic and on hills. New operators usually underestimate that last part.
For many mobile detailers, the workable range lands in the middle, not at the maximum tank size the van can physically hold. A setup around 65 to 100 gallons often makes sense for a solo operator or small crew because it leaves room for reels, chemicals, extractor access, and safer weight distribution. If your service area stays close to a shop or approved refill point, going smaller can be the smarter business move.
Cold weather changes the calculation too. In freezing climates, carrying more water means more water lines, fittings, and stored volume to protect overnight. A slightly smaller tank can be easier to drain, easier to keep warm, and cheaper to winterize.
How to size it without guessing
Use this order:
Check payload before shopping
Start with the vehicle door sticker and the loaded weight of the rest of your setup. Water is only one part of the payload.Match the tank to your service mix
Maintenance washes, muddy work trucks, RVs, and interior-heavy details all pull water differently. Build around your average day, not your busiest possible day.Look at refill access
Operators with a home base, shop access, or dependable refill stops can run a smaller tank efficiently. Operators covering wide rural routes usually need more onboard reserve.Leave room for water-saving tools
A smart setup is not only about carrying more. It is about wasting less. Space for hose management, shutoff valves, and the rest of your mobile car wash supplies affects daily water use more than many new detailers expect.Plan for local rules
If you work in areas with runoff restrictions or tighter water-use expectations, conservation matters as much as raw capacity. A disciplined low-waste process can let you run a smaller tank without losing production.
What usually works
For standard mobile detailing, 65 to 100 gallons is often the practical range if the vehicle can support it safely. Below that, refill frequency can start breaking up the day unless your route is tight. Above that, the build starts acting more like a fleet or high-volume wash rig, with higher weight, more complexity, and more winterization work.
I tell new operators to size for a normal profitable day, not for the once-a-month schedule that looks packed on paper. Extra tank capacity feels safe until it cuts into payload, slows the vehicle down, and makes the rest of the system harder to live with.
A tank should support your workflow, not dominate the build. If full water load forces compromises everywhere else, size down and improve conservation.
Mounting and Plumbing Your Water Tank System
A tank that isn't mounted correctly is a safety problem first and a convenience problem second. Under braking or cornering, the water shifts. That movement changes the vehicle's center of mass and puts stress on the tank, fittings, floor, and anchor points. Professional setup guidance stresses mounting the tank on a flat, stable surface and securing it with straps or tie-downs, because liquid surge during braking and cornering can shift weight and stress fittings. The same guidance also warns that loose hoses, valves, or fittings reduce usable water supply and can damage components (Carsupplies Warehouse tank setup guidance).
If you're collecting parts for a build, a good checklist of mobile car wash supplies helps you think about the tank as part of a larger system instead of a standalone purchase.
Mounting that won't cause trouble later
Start with placement. Keep the tank low, centered, and on a surface that stays flat under load. If the floor flexes, the tank and fittings take that stress over time.
Use hardware that matches the job, not whatever is sitting in the garage. Straps should hold the tank firmly without allowing lateral movement. Anchor points need to be tied into structure that can resist the load in a hard stop. A tank that slides even a little will eventually loosen plumbing, wear through material, or both.

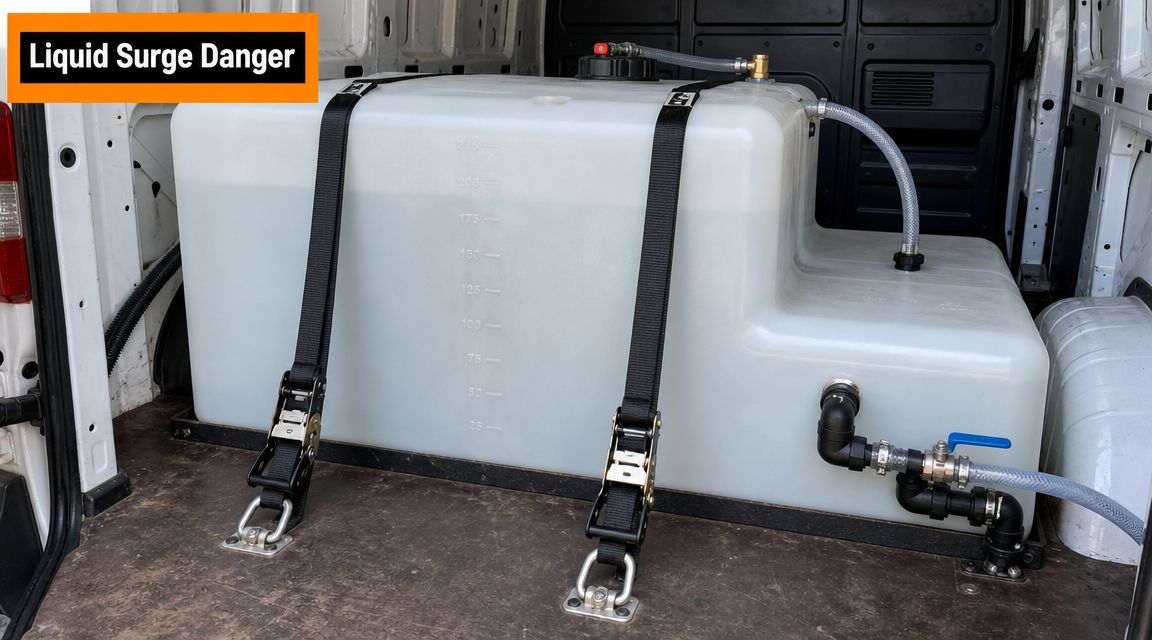

A compact example from the field shows how these systems are packaged in real life. An 80-gallon tank measuring 44.5 × 22 × 20.5 inches illustrates the kind of footprint many van builds use to preserve usable floor area while still carrying meaningful water capacity. That same setup guidance reinforces the importance of stable mounting and secure plumbing in tight cargo spaces.
Plumbing layout that works in the field
Keep the feed path simple. Every extra fitting is another place for a leak, air intrusion, or vibration failure.
A practical basic layout looks like this:
Tank outlet first
Start from the lowest usable outlet so the pump gets a steady feed.Ball valve next
This gives you control during maintenance, transport, or emergency shutoff.Filter before the pump
Debris protection matters more than most beginners think.Pump inlet after the filter
The pump should receive clean, uninterrupted water.Service loops in the hose
Leave enough slack to avoid stress at fittings, but not so much that lines snag everything in the van.
A tiny suction-side leak can look like a pressure problem. Operators replace pumps for issues that started with a loose fitting.
Here's a visual walkthrough that helps when you're planning component placement and hose routing:
Common install mistakes
- Mounting on uneven flooring causes stress fractures, rocking, and hardware loosening.
- Using weak anchors creates movement that gets worse every week.
- Ignoring access makes it hard to tighten fittings, clean filters, or service the pump.
- Overcomplicating plumbing adds failure points without improving performance.
A clean install is usually a simple install.
Selecting Pumps and Filtration Systems
You feel pump quality the first time you lose pressure halfway through a wash on a dirty truck in a parking lot. The tank still has water, but the machine surges, the spray pattern falls apart, and the job slows down fast. In the field, that usually points to one of three problems. Weak pump selection, poor filtration, or a feed setup that cannot keep water moving consistently.
Pressure matters, but stable water delivery matters more. A mobile setup that washes several vehicles per day can burn through water quickly with a pressure washer, which is why pump efficiency and flow control affect tank performance just as much as tank size. A poorly matched pump makes a decent tank feel too small.
What to match
Match the pump to the way you work. A rinse-heavy exterior package, a water-conscious maintenance route, and a mixed detailing menu do not put the same demand on the system.
Focus on these points:
Flow rate before headline pressure
If the pump cannot maintain steady supply to the washer, pressure numbers on paper do not help much on the job.Short, clean feed runs
Long suction lines increase restriction and make priming harder, especially once filters start collecting debris.A filter sized for service, not just installation
Use a pre-pump strainer you can inspect and clean in minutes. If it is buried behind the tank, it will get ignored.Duty cycle and repair access
New operators often buy for price alone. A cheaper pump can work fine, but only if it is easy to replace and you keep a spare plan in mind.
Why filtration deserves more attention
Tank water picks up contamination in normal use. Dust gets in during filling. Plastic shavings show up in newer systems. Sediment collects if the rig sits for a while. Once that material reaches the pump, seals wear faster, check valves stop seating properly, and nozzle performance gets erratic.
Clean water protects the pump, the hose, the gun, and the finish you are standing in front of.
Filtration also affects winter reliability and conservation, even if operators do not connect those issues at first. A partially clogged strainer makes the pump work harder, raises heat, and can leave more water trapped in low points during shutdown. That becomes a bigger problem in freezing weather. It also pushes operators to use more water than needed because poor spray quality leads to longer rinse times. If you are building a lower-water workflow, the right pump and clean inlet water pair well with eco-friendly detailing products for lower-water service routines.
A dependable baseline setup
A practical baseline is simple. Use a tank-fed pressure washer, a shutoff valve, a serviceable pre-pump filter, and a pump you can access without unloading half the van.
I tell new operators to buy the setup they can diagnose on a bad day. Fancy add-ons do not help if a clogged filter or tired pump costs you two afternoon jobs because everything is buried or overcomplicated.
For operators who want the service done without building their own mobile rig, companies such as GP Mobile Car Wash & Detail provide mobile washing and detailing service using on-site equipment rather than requiring the customer to sort out tank, pump, and plumbing choices themselves.

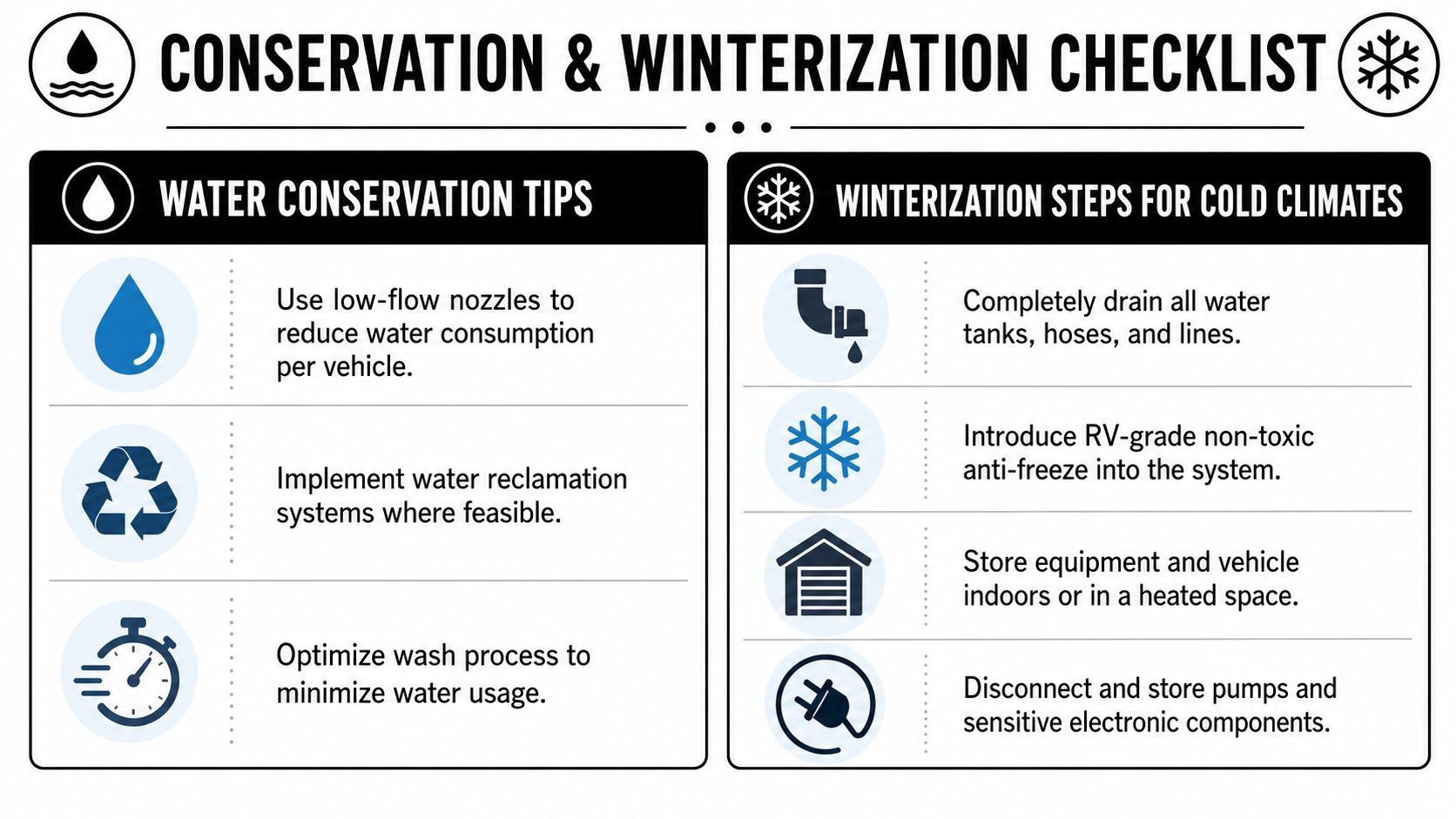

Pro Strategies for Conservation and Winterization
The operators who last don't just think about today's job. They think about weather, runoff, overnight storage, and where the business is headed. Two topics separate polished setups from fragile ones: freeze protection and water discipline.
A major gap in most advice is winter planning. Mobile rigs live in the same cold air as the van or trailer that carries them. In colder markets such as Nebraska, freeze events can shut down service for days and create repair costs that are often avoidable with insulation, drain-down procedures, or heat pads (winterization planning for mobile detailing rigs).
If you're also trying to reduce runoff and simplify your process, these eco-friendly detailing products fit naturally into a lower-water workflow.
Winter habits that prevent expensive damage
Cold weather doesn't just threaten the tank. It threatens every vulnerable point in the system, especially fittings, valves, hose sections, and pumps where trapped water sits.
A practical winter routine usually includes:
- Drain the system completely when overnight freezing is likely.
- Pay attention to low spots in plumbing runs where water can remain trapped.
- Protect exposed components with insulation or heat where draining alone won't solve the problem.
- Use heated storage when possible because prevention is easier than replacing cracked parts.
Some operators also use RV-safe antifreeze in parts of the system when a full drain-down isn't realistic. The right choice depends on how often the rig is used, where it's parked, and which components stay exposed.
Conservation is also a business decision
Water conservation isn't only about being careful. It affects route efficiency, tank size, and where you can legally or practically work. The more efficient the wash process, the smaller the tank you may be able to run without constant refill stops.
That matters in tighter urban jobs, office settings, parking structures, and places where runoff control is taken seriously. Low-water and hybrid workflows can give you more flexibility than hauling more water.
What efficient operators do differently
- They shut off flow between passes instead of letting water run while repositioning.
- They match the method to the vehicle rather than using the same heavy-water approach every time.
- They treat tank size as part of process design instead of assuming more water is always the answer.
In cold climates, the best tank setup is the one you can protect every night, not the one that looks most impressive in the parking lot.
Common Mobile Water Tank Questions
Do I need the biggest tank I can fit?
Usually no. The better question is whether the tank matches your payload, service mix, and route. A tank that overwhelms the vehicle creates more problems than it solves.
Should I use customer water instead of carrying my own?
Some operators do both. Carrying your own water gives you independence and keeps the service consistent. Customer water can be a backup or refill option, but building the business around it can limit where you work and how smoothly jobs go.
Is a larger tank better for professionalism?
Not by itself. Customers notice reliability, clean work habits, and whether you finish the job without issues. They don't care if the tank is oversized if the rig is awkward, leaking, or disorganized.
What fails most often in a tank system?
In day-to-day use, trouble usually starts at the simple points. Loose fittings, poor mounting, neglected filters, and trapped water in cold weather cause more headaches than the tank body itself.
Can I run a smaller tank with a low-water process?
Yes, if your workflow supports it. Efficient pressure washer use, rinseless work where appropriate, and tighter route planning can reduce the pressure to haul excess water. The setup has to match the service style.
